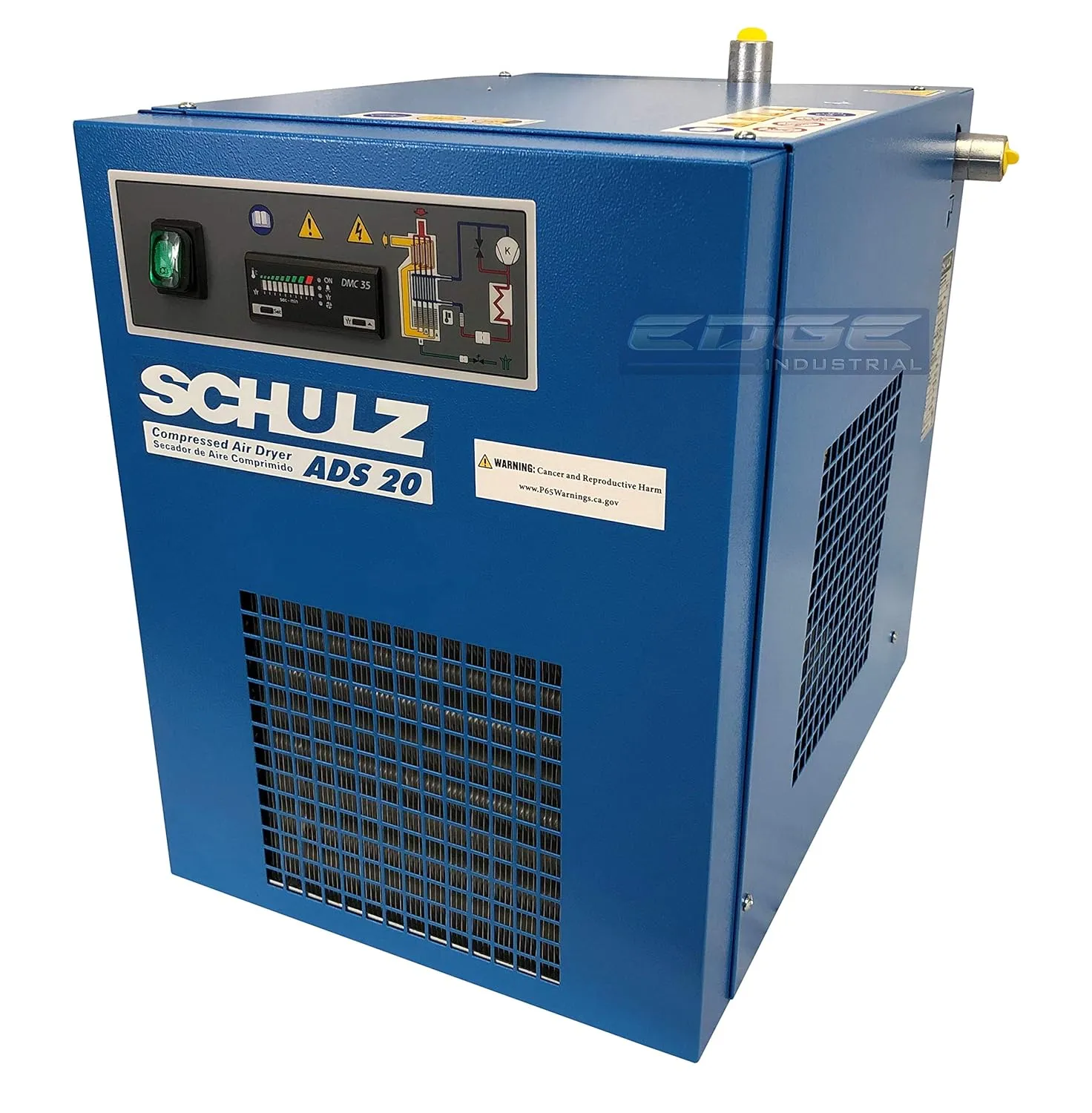

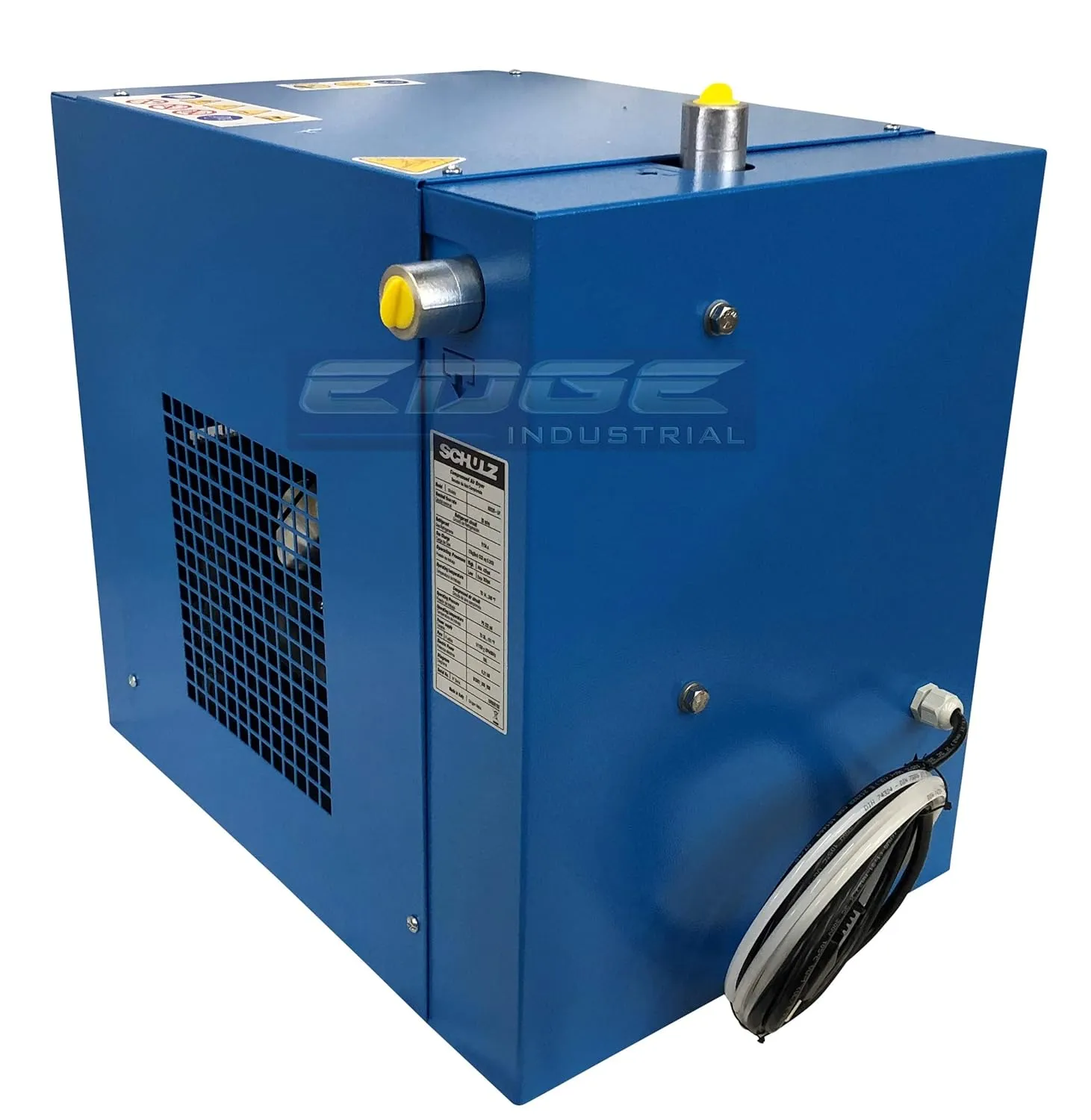

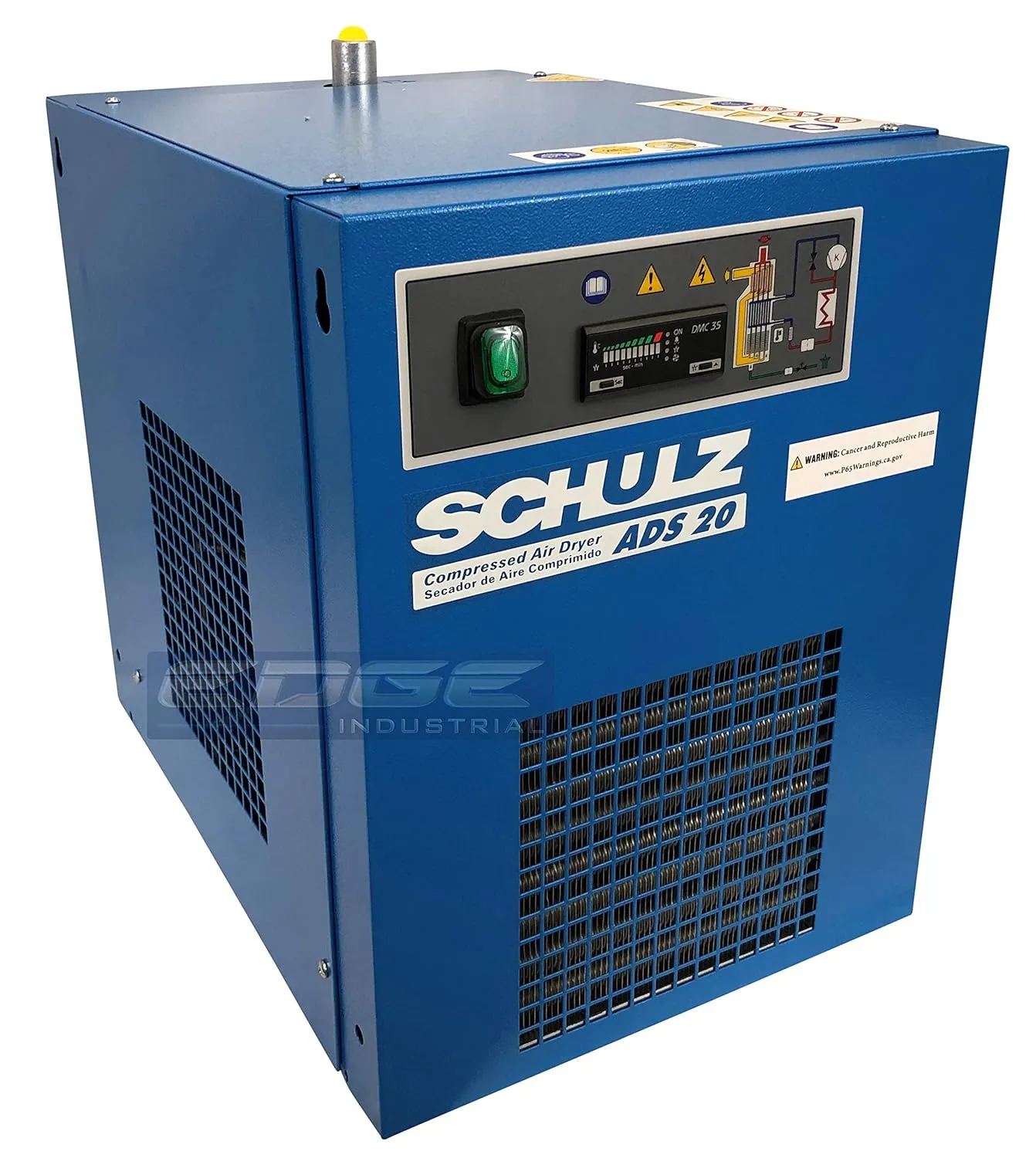

- NEW 20-25 CFM SCHULZ NON-CYCLING REFRIGERATED AIR DRYER 115V, SINGLE PHASE
- PLEASE NOTE: THIS IS FOR THE DRYER ONLY. A MINIMUM OF A 1 MICRON FILTER MUST BE USED BEFORE THIS REFRIGERATED AIR DRYER AS PER THE MANUFACTURERS WARRANTY. SEE LOWER DESCRIPTION FOR DETAILS
- ITS VITAL THAT WATER & OIL ARE REMOVED FROM THE PIPING BEFORE HITTING THE DRYER. PLEASE SELECT OPTION " WITH PRE-FILTER" FOR A COMPLETE KIT THAT INCLUDES THE DRYER, PLUS STAGE 1 WATER SEPARATOR A STAGE 2 COALESCING FILTER FOR OIL
- 20 CFM @ 100 PSI / 1/2" FEMALE NPT INLET & OUTLET / REFRIGERANT FLUID TYPE: R134a / WIRE SIZE REQUIRED: 14 GAUGE / DEW POINT: 41 DEGREES FAHRENHEIT AT 100 PSI
- 220 PSI MAX INLET / DIMENSIONS IN INCHES: ( HEIGHT 18.75" ) ( WIDTH 15" ) (LENGTH/DEPTH 20.25") / 55 LBS
IMPORTANT :::COMPRESSED AIR CONTAINS NATURALLY OCCURRING MOISTURE, WHICH CAN NEGATIVELY AFFECT COMPRESSED AIR APPLICATIONS THAT REQUIRE MOISTURE FREE AIR. DRYERS ARE A COMMON SOLUTION FOR REMOVING SUCH MOISTURE. IT IS VITAL THAT LIQUID WATER AND OIL ARE REMOVED FROM YOUR COMPRESSED AIR LINES BEFORE ENTERING ANY REFRIGERATED AIR DRYER. LIQUID WATER AND/OR OIL FROM YOUR COMPRESSOR CAN DAMAGE THE INTERIOR COMPONENTS OF THE DRYER RESULTING IN DRYER NON-PERFORMANCE OR FAILURE. SCHULZ REQUIRES A MINIMUM OF A 1 MICRON IN-LINE FILTER TO BE USED BETWEEN THE COMPRESSOR OUTLET AND THE DRYER INLET. A 1 MICRON FILTER IS THE MINIMUM REQUIREMENT HOWEVER STILL NOT THE BEST SOLUTION. FOR THE BEST RESULTS AT REMOVING MOISTURE WATER AND OIL FROM YOUR COMPRESSED AIR LINES IS A WATER SEPARATOR COALESCING FILTER. IF YOU SELECT THE AMAZON LINK MARKED " WITH PRE-FILTER" ABOVE. THAT GETS YOU THE REFRIGERATED AIR DRYER AN INDUSTRIAL RATED STAGE 1 WATER SEPARATOR WITH AUTO DRAIN & AN INDUSTRIAL RATED STAGE 2 COALESCING FILTER WITH AUTO DRAIN. BY SELECTING THE OPTION " WITH PRE-FILTER", ENSURES THAT NO MOISTURE WATER OR OIL MAKE THEIR WAY INTO THE REFRIGERATED AIR DRYER, RESULTING IN A TOP PERFORMING DRYER THAT WILL LAST MANY YEARS TO COME. IN ADDITION, ANOTHER EFFECTIVE WAY TO SEPARATE MOISTURE WATER FROM YOUR COMPRESSED AIR IN YOUR COMPRESSED AIR LINES, STARTS WITH THE COMPRESSED AIR LINES THEMSELVES. WHEN YOU ARE SETTING UP OR INSTALLING YOUR PIPING, YOU ALWAYS WANT TO FORCE YOUR COMPRESSED AIR TO CLIMB VERTICALLY, WHILE POOLING LIQUID WATER IS DRIVEN DOWNWARDS BY GRAVITY. USUALLY INTO SOME SORT OF DRAIN OR BALL VALVE THAT IS RELEASED PERIODICALLY.VIEW OUR ATTACHED PICS FOR OUR RECOMMENDED COMPRESSED AIR LINE SET UP WITH FILTERS AND BY PASS.
- Product Dimensions : 25 x 22 x 19 inches; 62 Pounds
- Date First Available : July 1, 2019
- Manufacturer : SCHULZ
- Country of Origin : Italy
