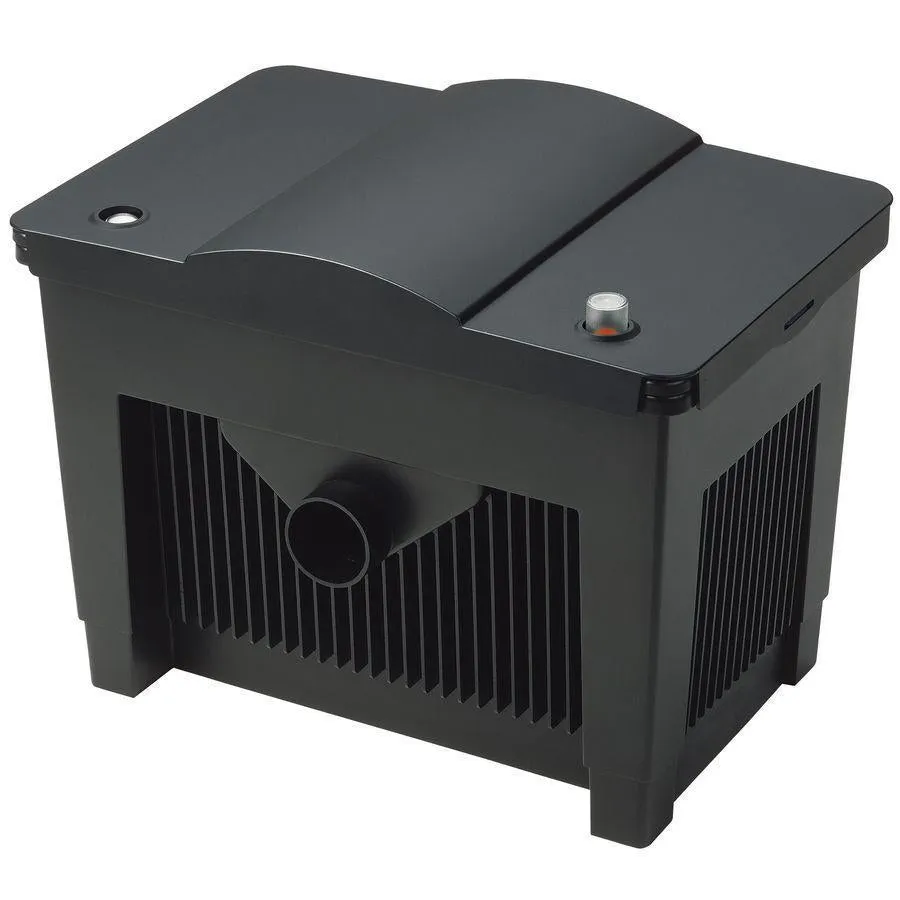

BioSmart 5000 Flow Through Gravity Filter by Oase
The BioSmart is a flow-through filter that is both innovative and efficient. It undertakes both biological and mechanical filtration and offers maximum oxygenation. With a sludge drain that makes for easy removal of coarse debris, the BioSmart is built for work - there is no need to remove or manually unclog the filter foams. Distinct filter zones promote the settlement of beneficial bacteria responsible for different phases of the nitrogen cycle, increasing the conversion of harmful ammonia in the pond. When used in conjunction with the BioSmart filter, the AquaMax Eco Classic 1200-2700 or AquaMax Eco Premium 2000-3000 and the Vitronic UV Clarifier qualify for the OASE Water Guarantee. Learn more about the Oase Clear Water Guarantee Here
FEATURES:
- Innovative Flow-Through filter design with biological and mechanical filtration provides maximum oxygenation.
- BioSmart 5000 is suitable for ponds up to 5,000 gallons (with no fish).

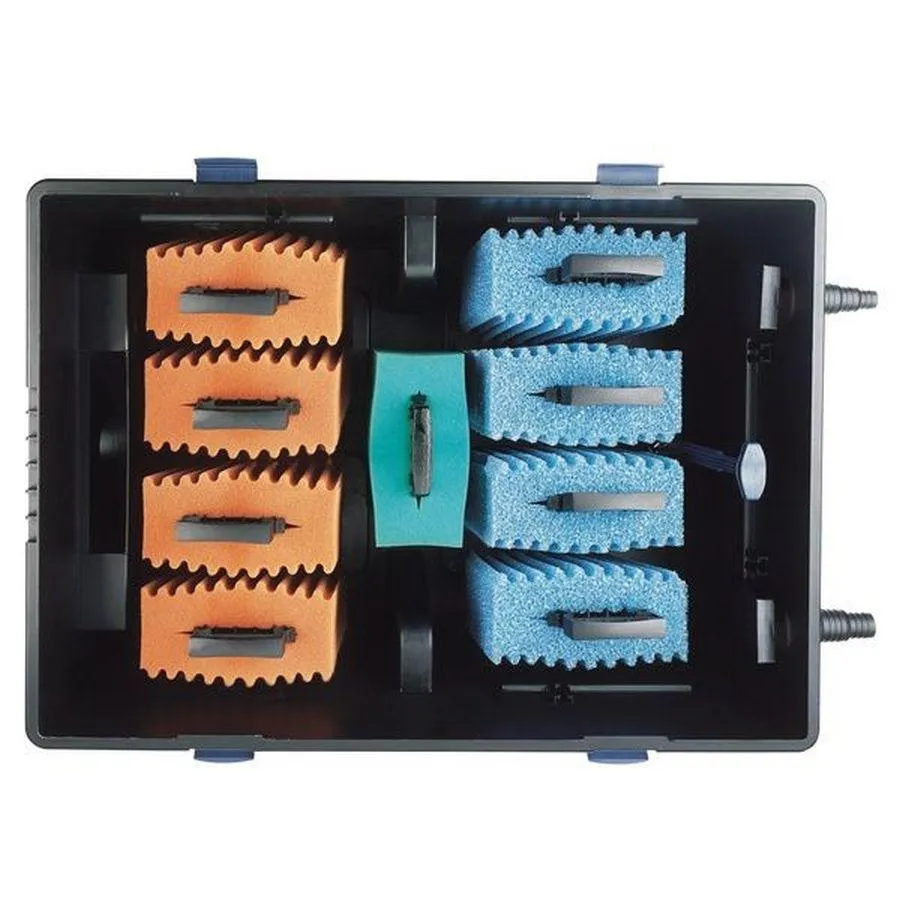

- High-surface area filter foams provide exceptional biological filtration capability.

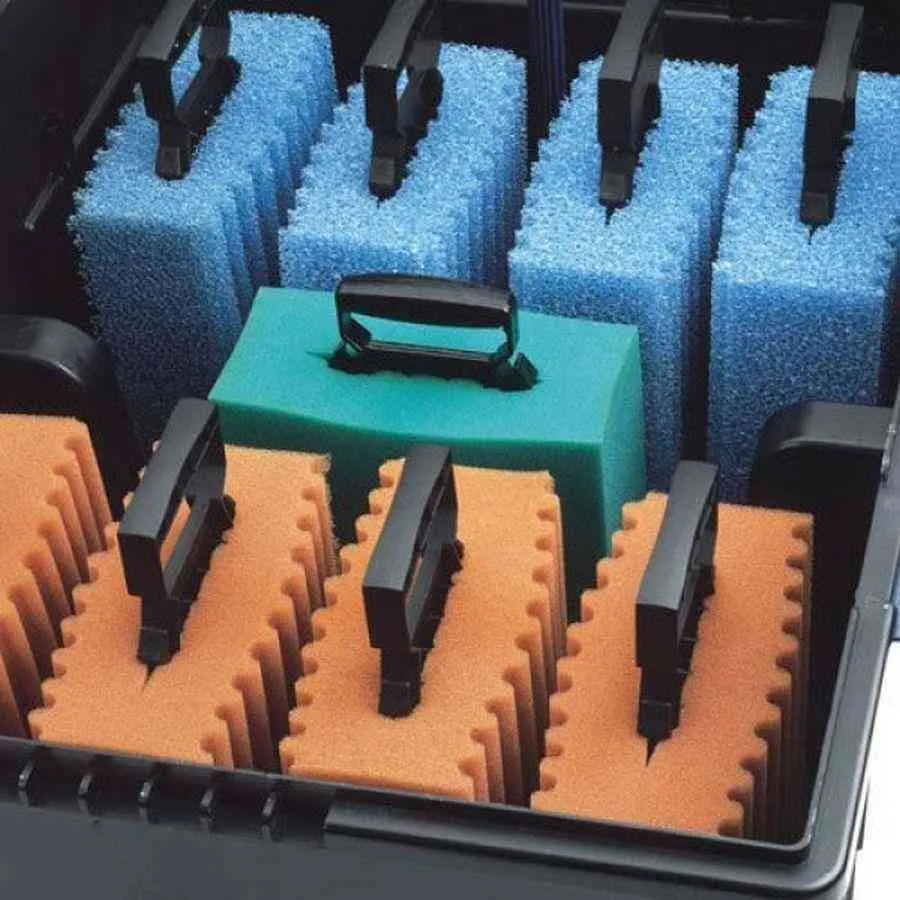

- Distinct filter zones promote the settlement of a variety of beneficial bacterial responsible for different phases of the nitrogen cycle, which increases the conversion of harmful ammonia in your pond.

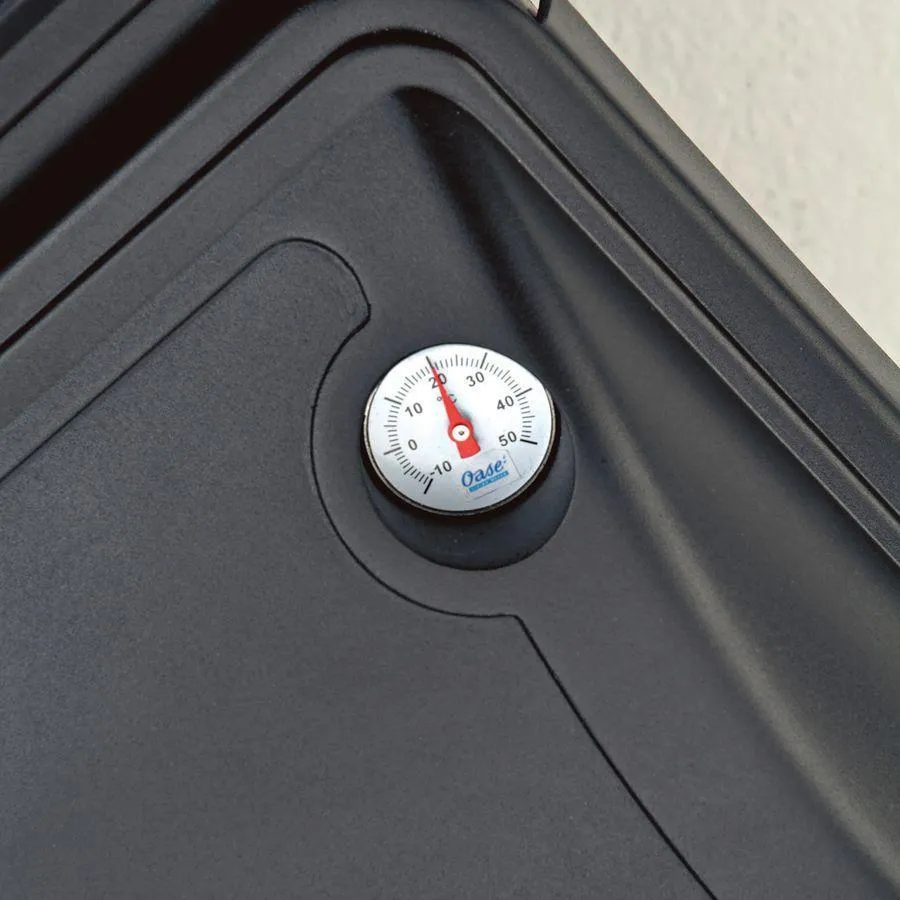

- Advance features include the built-in cleaning indicator notifies you when the filter needs cleaned and water temperature display tells you the water temperature at all times.

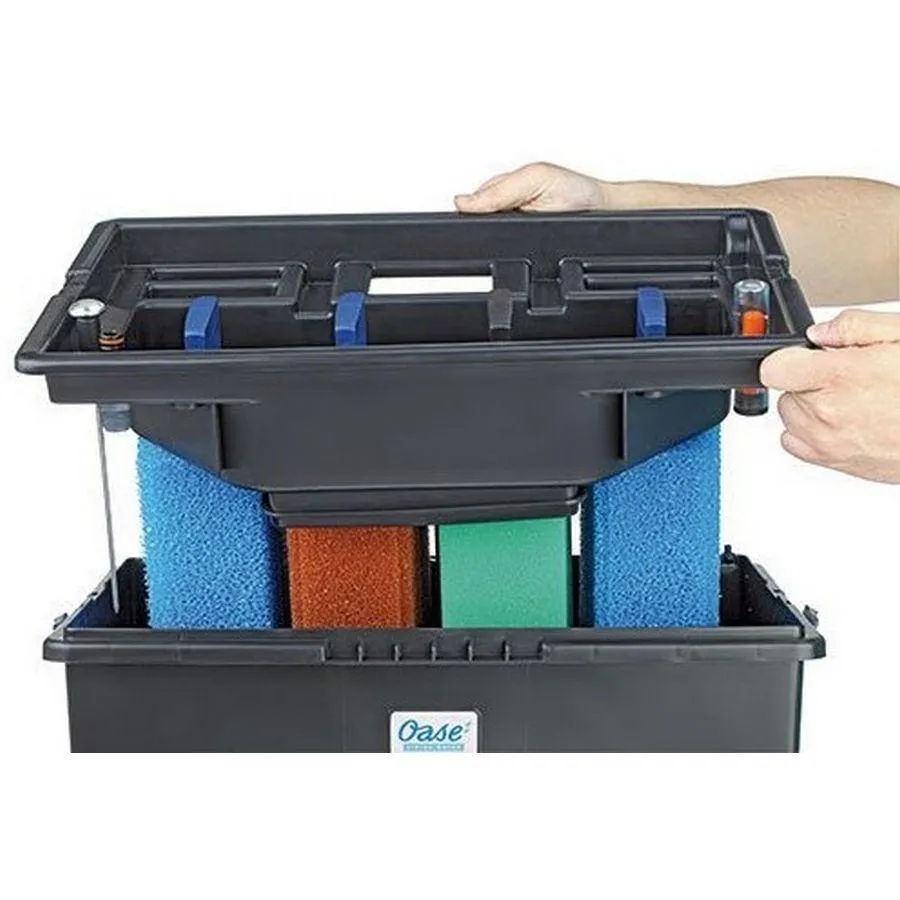

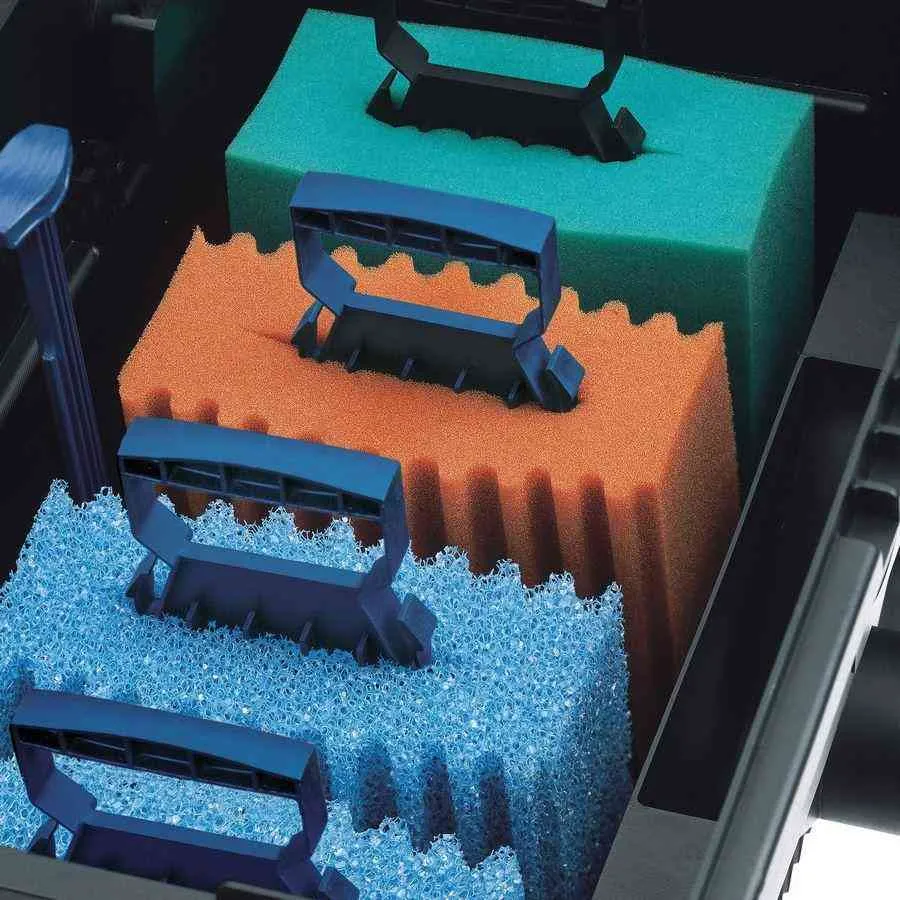

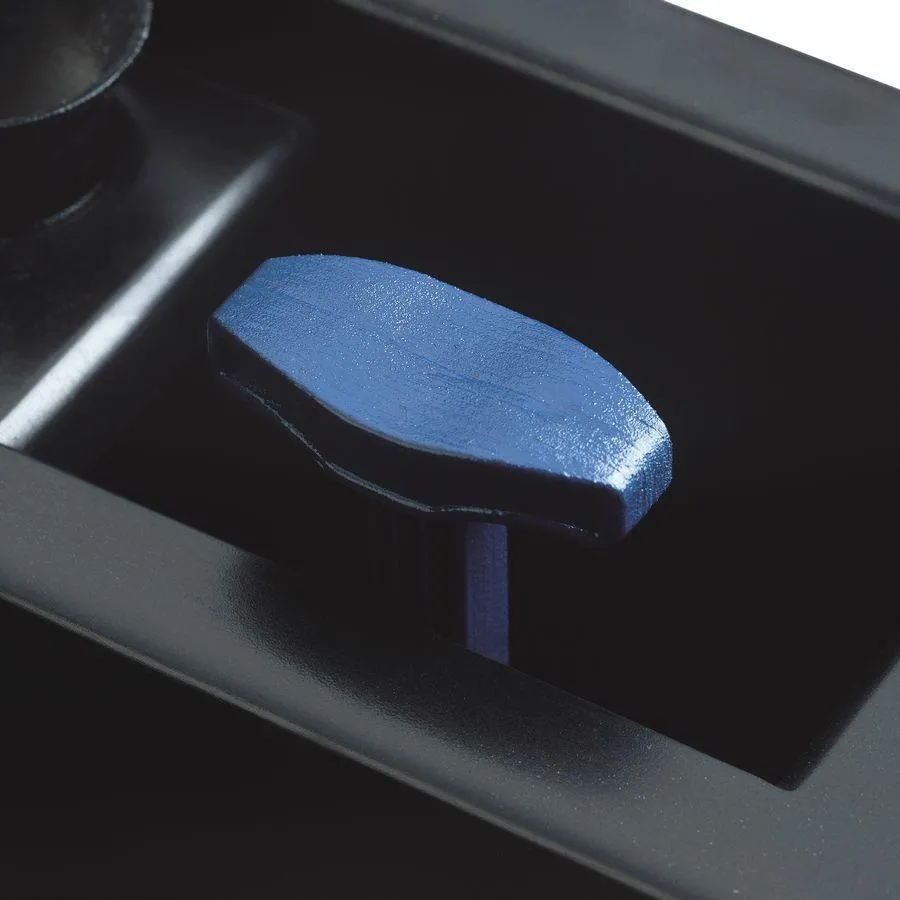

- Cleaning handles for convenient maintenance allow for easy cleaning without needing to remove or manually unclog the filter foams.
- After clearing the filter foams, the sludge drain can be opened for easy removal of coarse debris from the unit.

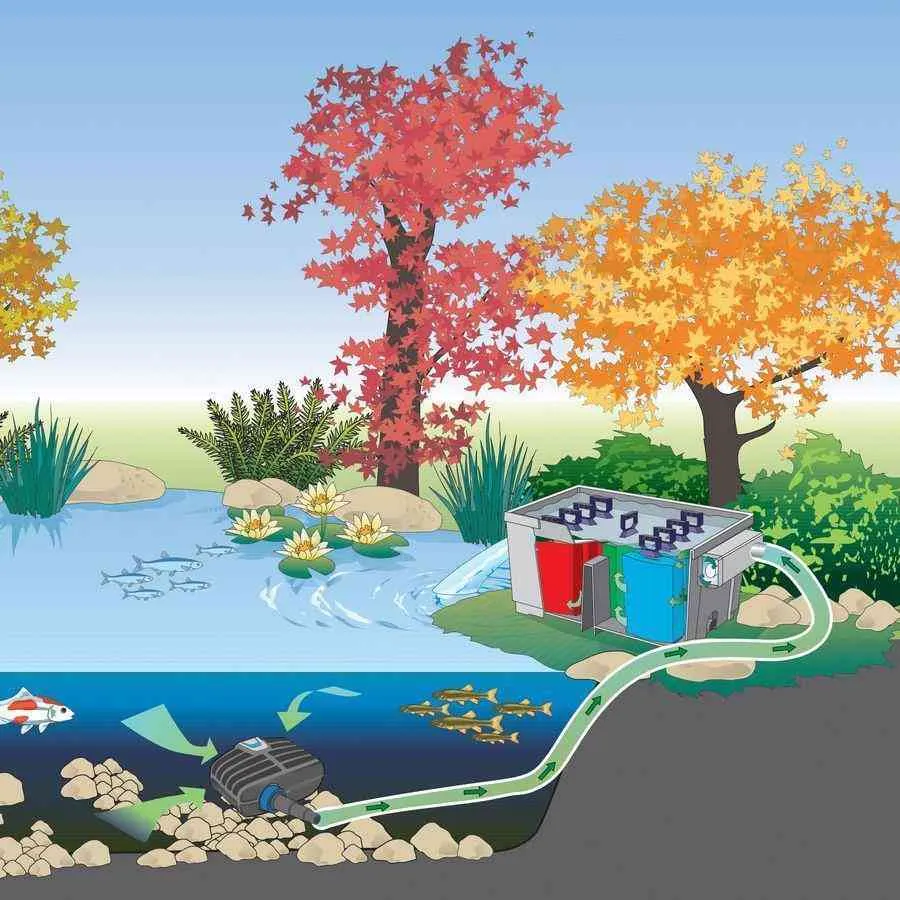

- For best results and clear water guaranteed, use with an appropriately sized OASE pump and UV clarifier.
- When properly sized, paired, and registered online, this product qualifies for the Clear Water Guarantee.
- 3 year warranty
SPECIFICATIONS:
| Dimensions | 22 x 22 x 16 in. |
| Net weight | 12.1 lbs. |
| Operating Voltage | n/a |
| Power Consumption | n/a |
| Power Cable Length | n/a |
| UVC Power | n/a |
| Min. Flow Rate | 1600 GPH |
| Max. Flow Rate | up to 2700 GPH |
| Head Height | n/a |
| Input Connections | 3/4, 1, 1 1/4 in. |

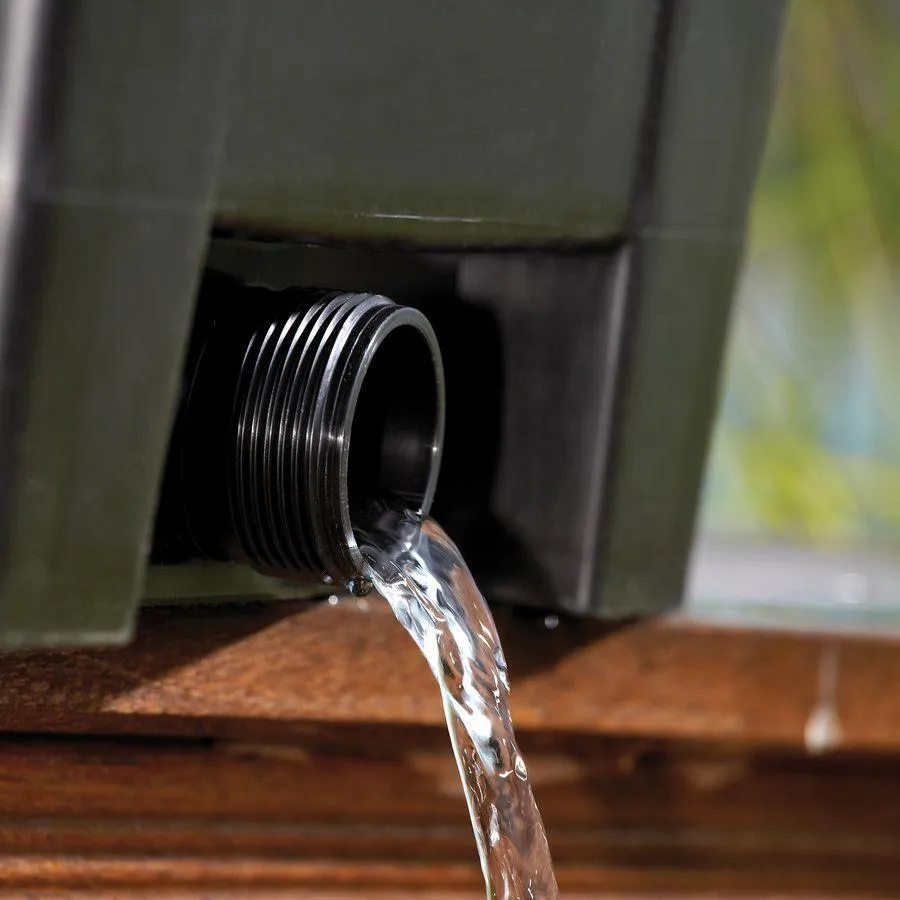

| Outlet Connections | 2 1/2 in. |
| Sludge Drain Connections | 2 in. |
| Max. Pond Size (no fish) | 5000 gallons |
| Max. Pond Size (fish stock) | 2500 gallons |
| Max. Pond Size (Koi) | 1250 gallons |
WHAT'S IN THE BOX?
- Hose tail adaptors
- Gaskets
- Retaining rings
- Hose clamps
When a pond owner uses specifically marked CWG products, they are guaranteed to have clear water and minimal maintenance. We guarantee that when a tape measure is placed vertically into the pond to a depth of 3 feet, the water will be clear enough to read the 1 inch mark at the tip of the tape measure.
| No Fish Load | Avg. Fish Load | Heavy Fish Load | UV Clarifier | Pump |
| <5000 gal | <2500 gal | <1250 gal | Vitronic 18 | AquaMax Eco Classic 1900 / AquaMax Eco Premium 2000 |
