- Plastic
- AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and dehumidifiers
- THERMALLY PROTECTED, HIGH PERFORMANCE MOTOR: 1/30 HP, 1.5 Amps, 93 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA certified to US and Canadian standards
- BUILT TO LAST: ABS tank, motor cover and volute; stainless steel motor shaft; thermal overload protected motor; can handle water temperatures up to 140° F (60° C)
- INCLUDES OVERFLOW DETECTION SWITCH and VINYL TUBING: switch can be set to shut down the appliance or sound an alarm (alarm not included); basic wiring knowledge required; 20' x 3/8" I.D. vinyl tubing
- SPECIFICATIONS: 3/8" OD barbed discharge, 80 GPH at 1' lift, 20', maximum 8.7 PSI, 3 inlet drain holes, 6'; maximum water temperature: 140° F
Product Description

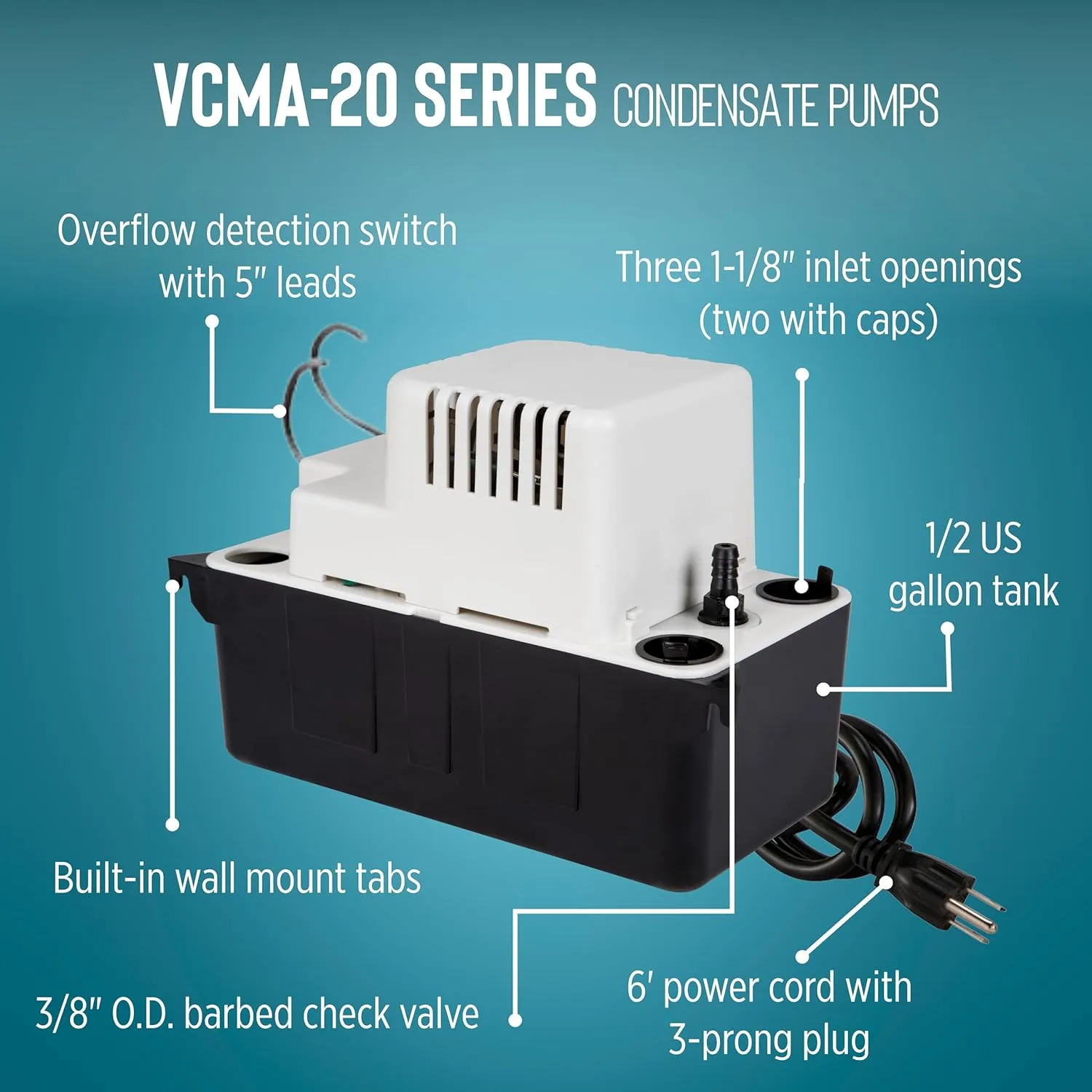

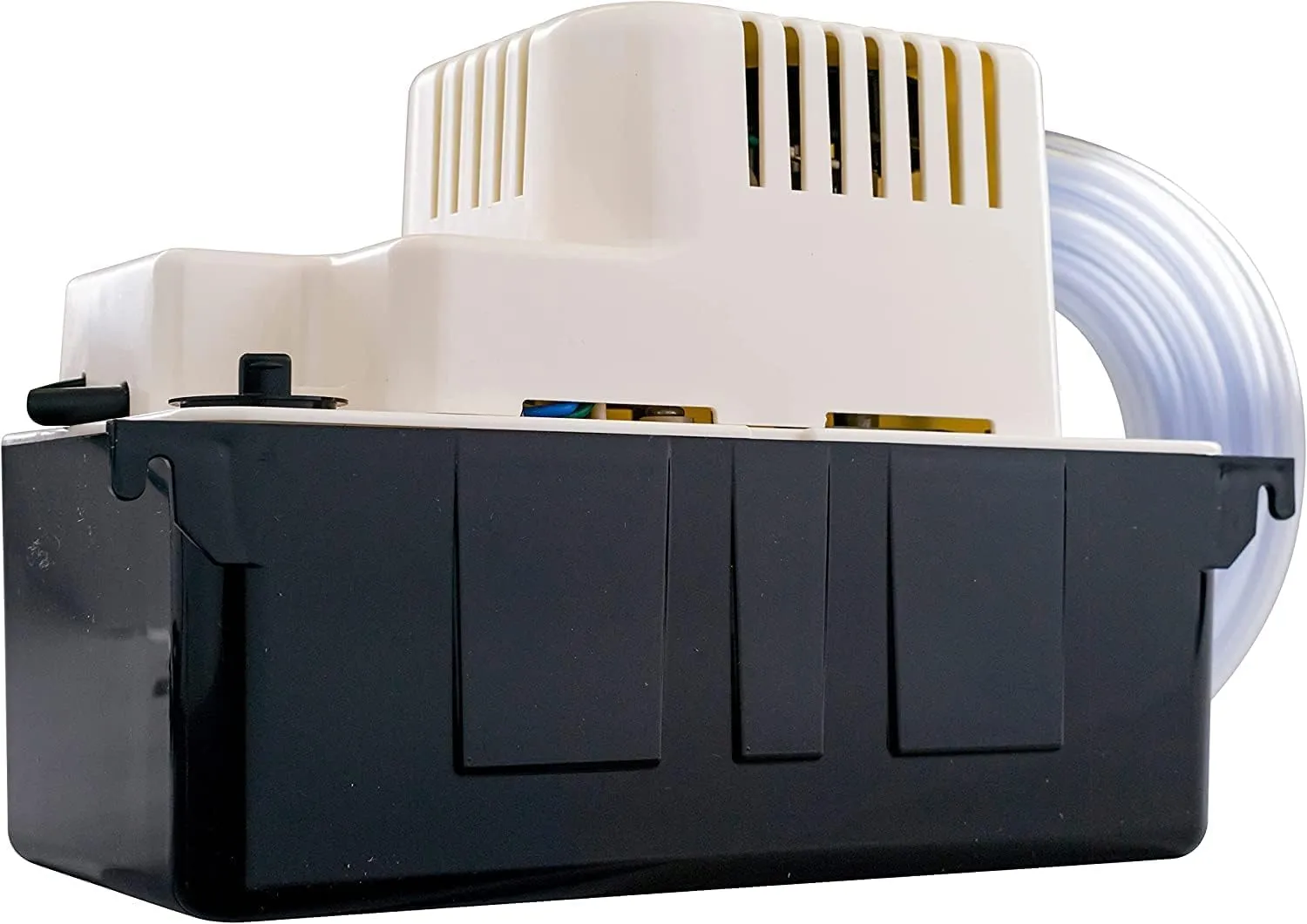

The Little Giant VCMA-20ULST 115-volt condensate removal pump is a 1/30 hp pump that is designed for collecting, detecting and removing condensation from air conditioners, dehumidifiers and refrigeration equipment. Its robut design is also suitable for high-efficiency gas furnace condensate and condensing boilers. This unit includes a 1/2-gallon condensate holding tank, a 3/8" O.D. barbed discharge adapter with a built-in check valve, a 6' power cord with 115V plug , 20' of 3/8" ID vinyl tubing, and an an overflow detection switch. The overflow detection switch can be set to automatically shut the equipment off or be set to activate an audible or visual alarm (alarm not included); basic wiring knowledge is required. The high-performance 115-volt motor is equipped with thermal overload protection and is CSA certified to US and Canadiand standards.
Features & Benefits:
- 1/30 hp high-performance motor pumps 80 gallons of water per hour
- ABS, tank, motor cover and volute
- Stainless steel motor shaft
- 1/2-gallon tank capacity
This is an authentic Little Giant product. The Little Giant brand is owned by Franklin Electric Co., Inc.
From the Manufacturer
Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
